Slide-Track Latheguard™

Description

Slide-Track Latheguards (Model No. 13079 and 13080) are designed to guard lathe chucks ranging from 10″ up to 24″ diameters. These models feature two (2) ³/₁₆” thick LEXAN® windows. Being situated on the top and front inclined panels, these windows provide excellent visibility for the operator. The front panel hinges up to allow access to the controls and settings of the machine.

Slide-Track Latheguards (Model No. 13081-13084) provides maximum operator protection on standard machines or large CNC lathes with chucks ranging up to 48″ diameter. These guards incorporate one LEXAN® front panel window and do not require a top window.

Please note: The slide track latheguard only guards the lathe chuck. O.S.H.A. also requires guarding at the point of operation. Flexbar offers the “Flexbar Travelguard” for that application (Model No. 13086, 13087).

Specifications/Ordering

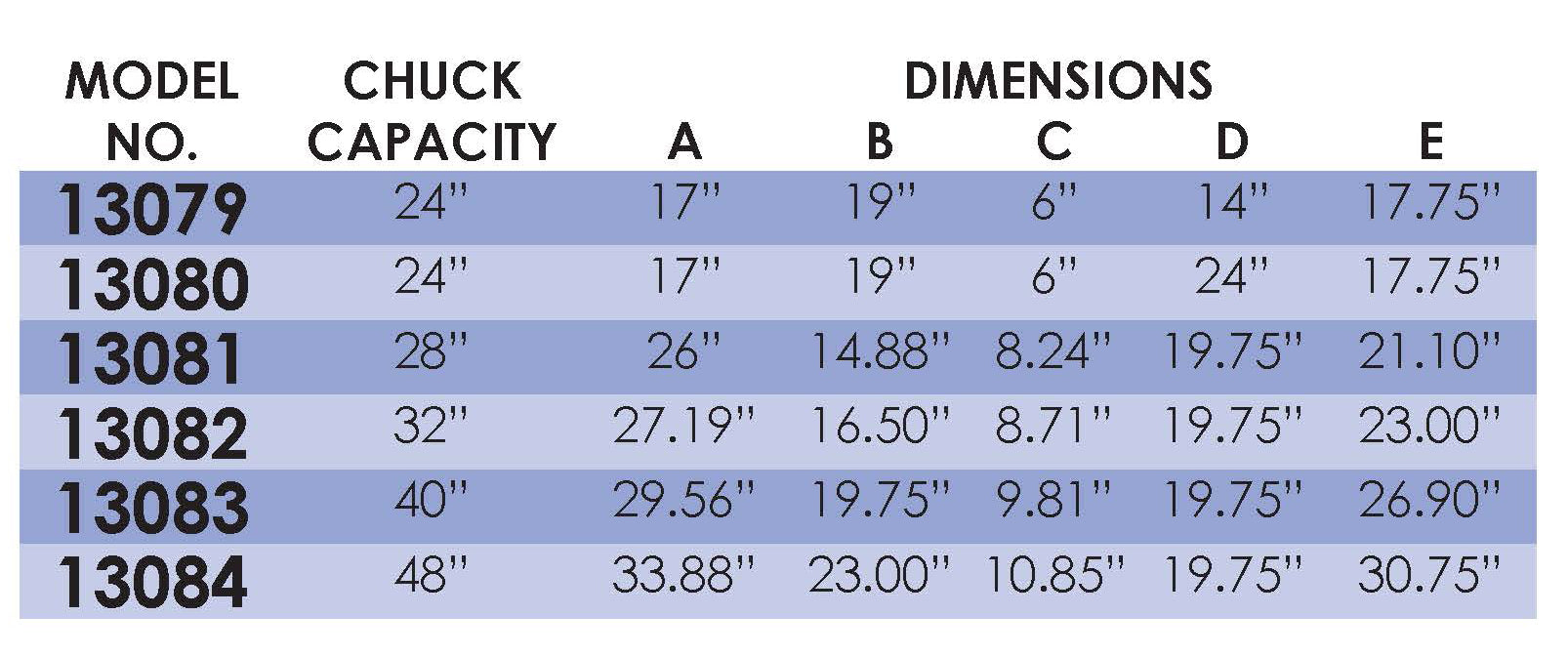

Specifications and Ordering:

Easy Installation:
Simply screw the 4 pillar posts supplied at 4 sites around the headstock and then slip on the track assembly chassis. Now mount the shield. Pillar posts, in relation to cross-members are adjustable vertically hence easily positioned around the headstock without interference. All hardware is included with easy-to-follow instructions.
