Description

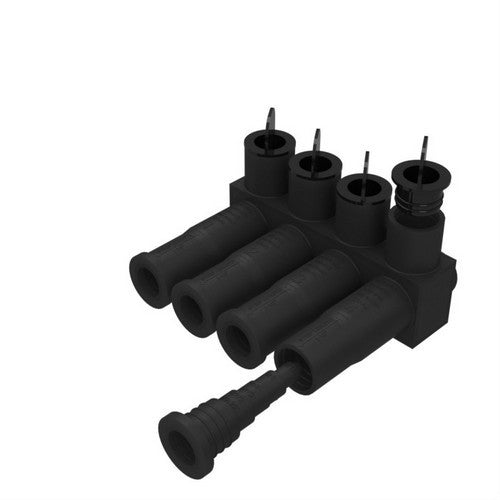

Morris 98024 Submersible Insulated Pedestal Connectors Multi-Port #12 – 350 MCM 4 Port

Submersible Electrical Pedestal Connectors Multi-Port Splice #12 – 350 MCM 4 Port – This Multi-Port Splice Submersible Pedestal Connector can be Used in Direct Burial and Submersible Applications.

Multi-Port Submersible Pedestal Splice Connectors #12 – 350 MCM 4 Port features include:

• Fully submersible, completely waterproof Multi-Port Submersible Pedestal Splice
• Designed for Use in Hand Holes, Below Grade Boxes, Direct Burial and Submersible Applications
• Completely Waterproof  Rubber Overmolded Body Ensures Installer Safety and Connector Integrity
• Range Taking Design Covers a Wide Range of Wire Sizes using a Stepped “ROCKET” Sealing Feature
• AL9CU Dual Rated for Both Copper and Aluminum Cables
• Insulated with High Dialectric Strength Abrasion and Chemical Resistant Rubber
• Molded with Precise Fit and Supplied with Removable Access Plugs over the Set Screws
• Eliminates the Need for Taping, Heat Shrink and other Labor Intensive Insulating Methods
• UL 486D Listed for Direct Burial and Submersible Applications
• Complies with ANSI C119.1 Specifications
• 600 Volts
• Ambient Temperature Rating Down To 0°F
• Order Qty of 1 = 1 Piece
