Sale!

Elkhart Floor Below Nozzle- 2.5″ NH Discount

Original price was: $4.99.Current price is: $2.00.

SKU: US-6953404465217 Categories: , Tags: , , ,

Description

Elkhart Floor Below Nozzle- 2.5″ NH

FLOOR BELOW NOZZLE
2.5” FEMALE NH x 1.5” MALE NH

Contact Your Local Fire-End Rep for prices.

Our Fire-End Sales Team

The Floor Below Nozzle has been specifically designed for fighting fires in high-rise buildings from the floor below at an effective angle and flow rate.

It is not uncommon to experience wind-driven and high heat conditions in high-rise building fires that can challenge conventional tactics. The Floor Below Nozzle provides a field-tested solution allowing crews to flow water from the floor below. Having an overall length of 101″ (2.57m), the Floor Below Nozzle comes in a two-piece design making transport to upper floors and storage easier. Equipped with a built-in 2-1/2″ XD Shutoff with a forged metal bale handle on the inlet side, the outlet side has a 1.5″ male fitting. Attaching a 1-1/8″ tip (sold separately) would allow flows of 265 gpm (1000 lpm) at 50 psi (3.5 bar)—powder-coated blue finish for easy identification.



Features

  • Extruded Seamless SCH 80 Aluminum 6061 Tube
  • Aluminum 6061 Rod & Plate
  • XD Shutoff (1.375″ (34.93mm) waterway)
  • 2.5″ Free Swivel Inlet
  • 1.5″ Male Outlet
  • Machined 6061-T6 Fittings & Adapters
  • All connection TIG welded
  • BUNA N O-rings
  • 100 PSI Operational Pressure Rating (Pressure tested to 200 PSI)
  • Manufactured and Assembled in the USA
  • Blue Powder Coat Paint, Black & Natural Hardcoat Anodize
  • Weight: 19.3 lbs (8.75 kg)
  • Dimensions: 12″ x 22″ x 101″ (0.30m x 0.56m x 2.57m) (Reference) panels/units
  • Pipe 1.5″ ID, 1.900″ OD (0.200″ wall thickness)

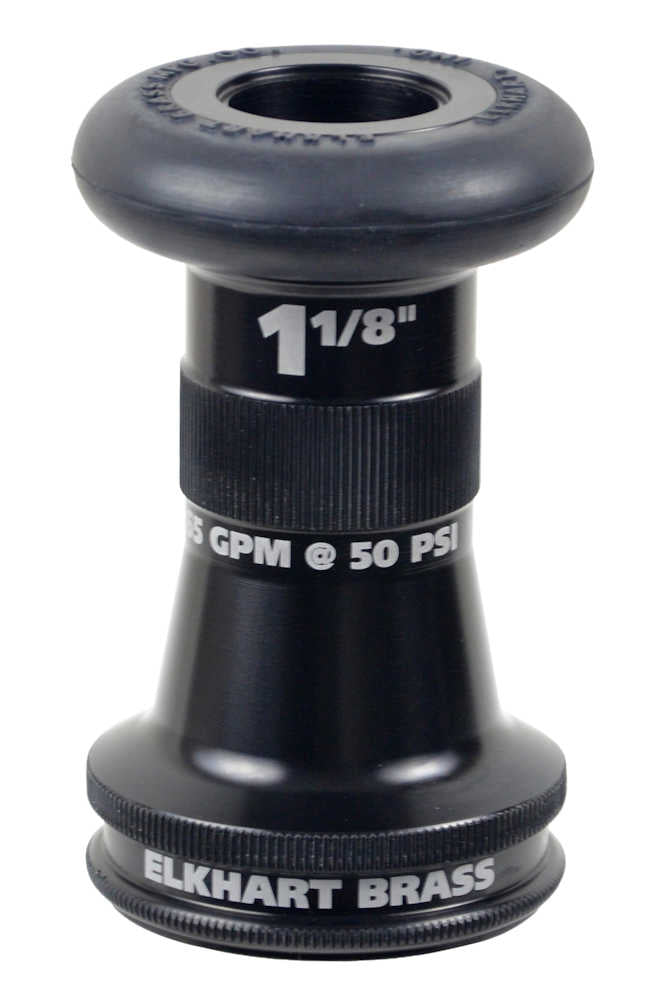

Note: Shown with 1-1/8” tip (sold separately)

    Floor Below Nozzle Brochure
