Sale!

Double Vertical Finger Duct Cable Manager, 42U/ 45U/ 48U/ 52U, 3″W/ 6″W/ 8″W on Sale

Original price was: $324.00.Current price is: $64.80.

SKU: US-6642310414426 Categories: , Tags: , , , , , , , , , , , , , , , ,

Description

Double Vertical Finger Duct Cable Manager, 42U/ 45U/ 48U/ 52U, 3″W/ 6″W/ 8″W

Description

Double Vertical Finger Duct Cable Manager, 42U/ 45U/ 48U/ 52U with 3″W/ 6″W/ 8″W

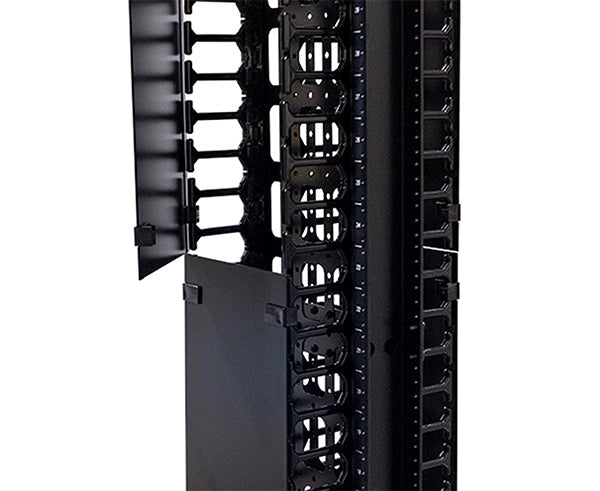

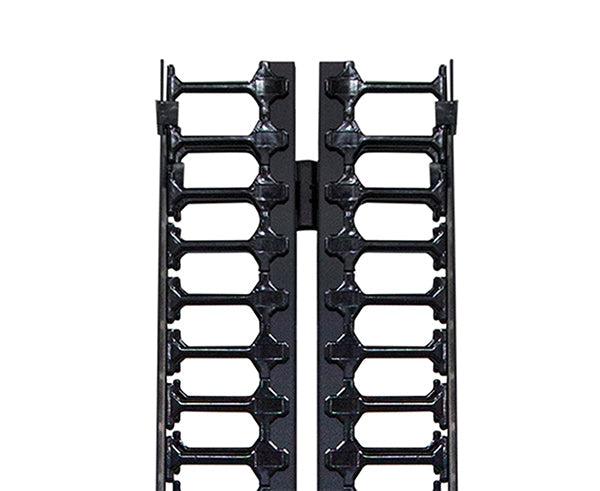

Our Double Vertical Finger Duct Cable Managers provide the extra capacity required for high-density rack installations. Constructed of (2) 3” wide managers mounted back to back, these double managers offer the same features as the single managers – molded plastic fingers with smooth, rounded edges that won’t snag or bind cables, removable split hinged covers, and pass-through openings along the back wall.

Features

Features

  • Pass-through openings along the back wall
  • Powder coated cold rolled steel frame and cover
  • 19” EIA 310D compliant
  • Mounting hardware included
  • Available in 42U, 45U, 48U, and 52U heights and 3”, 6”, and 8” widths

Specifications

Specifications



Double Vertical Finger Duct Cable Manager, 42U/ 45U/ 48U/ 52U, 3″W/ 6″W, 8″W
Rack Unit Qty

42U

(3″/ 6″/ 8″ W)

45U

(3″/ 6″/ 8″ W)

48U

(3″/ 6″/ 8″ W)

52U

(3″W)
Dimension HxW(3″/6″/8″)xD 70″ x 3.8”/ 6″/ 8″ x 4.5” 73.5″ x  3.8”/ 6″/ 8″ x 4.5” 80.5″ x 3.8”/ 6″/ 8″ x 4.5” 87.5″ x 3.8” x 4.5”
Base Material Steel
Cover Material Steel
Finger Duct Material Plastic
No. of Removable Covers 4
Cable Pass-Through Openings Yes
Mounting Hardware Included
Cable Capacity (CAT5e) (3″/6″/8″) 384/ 786/ 1,054 (Based on 50% Fill Rate)
Cable Capacity (CAT6) (3″/6″/8″) 246/ 504/ 676 (Based on 50% Fill Rate)
Cable Capacity (CAT6A) (3″/6″/8″) 132/ 270/ 360(Based on 50% Fill Rate)
Qty Per Package 1 (Sold Individually)

What’s In The Box

What’s In The Box

42U:

  • Qty 1 – 42U Double Vertical Finger Duct Cable Manager

45U:

  • Qty 1 – 45U Double Vertical Finger Duct Cable Manager

48U:

  • Qty 1 – 48U Double Vertical Finger Duct Cable Manager

52U:

  • Qty 1 – 52U Double Vertical Finger Duct Cable Manager

Additional information

Size

42U, 45U, 48U, 52U
Width

3"W, 6"W, 8"W
