Basic Rack Mount PDU – 20A, 100-120V, 1.9kW w/NEMA 5-20R (Vertical) Sale

Original price was: $159.00.Current price is: $39.75.

SKU: US-6658164785242 Categories: , Tags: , , , , , , , , , , , , ,

Description

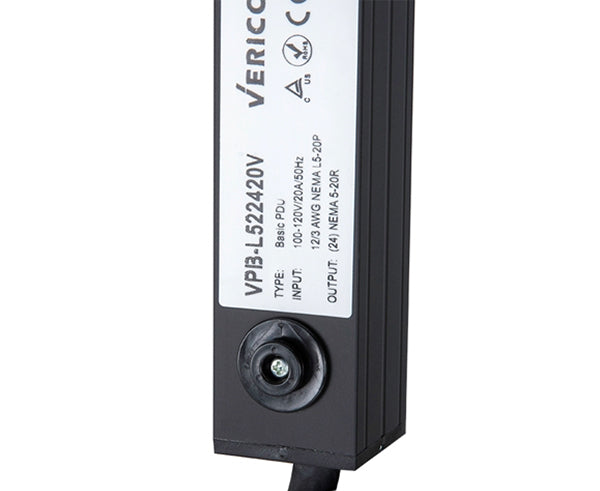

Basic Rack Mount PDU – 20A, 100-120V, 1.9kW w/NEMA 5-20R (Vertical)

Descriptions

Basic Rack Mount PDU – 20A, 100-120V, 1.9kW w/NEMA 5-20R (Vertical)

Primus Cable Basic Rack Mount PDUs distribute reliable power to IT equipment in a wide variety of applications where intelligence and/or remote monitoring are not required.

NPNB-VPB-L522420V features (24) NEMA 5-20R outlets protected by a single 20A circuit breaker, a reset button in the event of an overload, and a durable anodized aluminum chassis. A 10 ft power cord with a NEMA L5-20P twist-lock plug connects to an external power supply, while the versatile mounting design allows outlets to face any of three directions

    Features

    Features

    • 24 NEMA 5-20R outlets
    • Single 20A circult breaker w/reset button
    • Switchless design prevents accidental shutdowns

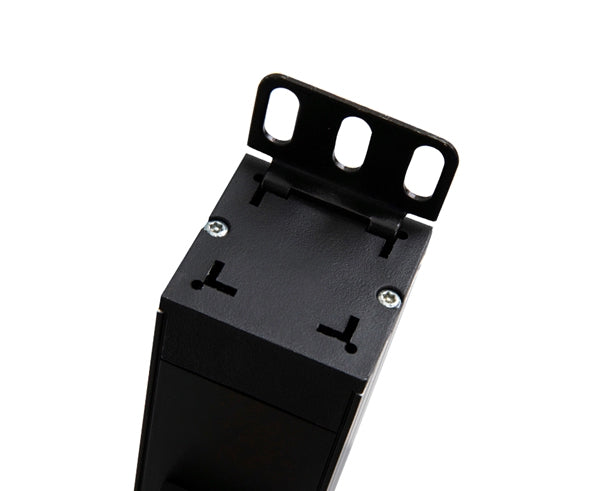

    • Includes button mounts for vertical mounting to Primus Cable network and server cabinets, as well as toolless mounting brackets that allow outlets to face the front, rear, or side.
    • Conforms to UL 60950-1 and is RoHS compliant

    Specifications

    Specifications

    OVERVIEW
    Item Number NPNB-VPB-L522420V
    PDU Type Basic
    Form Factor Vertical (zero U)
    UPC Code 846788117338
    OUTPUT
    Rated Output Voltage 120V Single Phase
    Output Recepticles (24) NEMA 5-20R
    Overload Protection (1) 20A Circuit Breaker
    INPUT
    Rated Input Voltage 120V Single Phase
    Max. Input Current 20A
    Frequency 50/60 Hz
    Power Capacity 1.9 kW
    Plug Type NEMA L5-20P Twist-lock
    Cord Type 12/3 AWG
    Cord Length 10 ft (3.05 meters)
    PHYSICAL
    Unit Width 38.9 inches (989mm)
    Unit Height 1.7 inches (44.0mm)
    Unit Depth 1.7 inches (44.0mm)
    Unit Weight 4.9 lbs (2.2 kgs)
    Shipping Length 43.3 inches (1,098.6mm)
    Shipping Width 4.0 inches (101.6mm)
    Shipping Depth 3.0 inches (76.2mm)
    Shipping Weight 5.4 lbs (2.4 kgs)
    Chassis Material Annodized Aluminum (black)
    Mounting Options

    1) Pre-installed button mounts

    2) Toolless 4-way mounting brackets
    ENVIRONMENTAL
    Operating Temperature 30° to 140° F (0° to 60° C)
    Operating Relative Humidity 0 – 95%
    Operating Elevation 0 – 13,123 ft (4,000 meters)
    SPECIAL FEATURES
    Breaker Reset Push button on front
    COMPLIANCE
    Certifications

    • Tested to conform to UL 60950-1; IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013: CB Scheme

    • RoHS

    What’s in the box?

    What’s in the box?

    • Qty 1 – Basic Rack Mount PDU – 15A, 100-120V, 1.4kW w/NEMA 5-15R Outlets (Vertical)
