Description

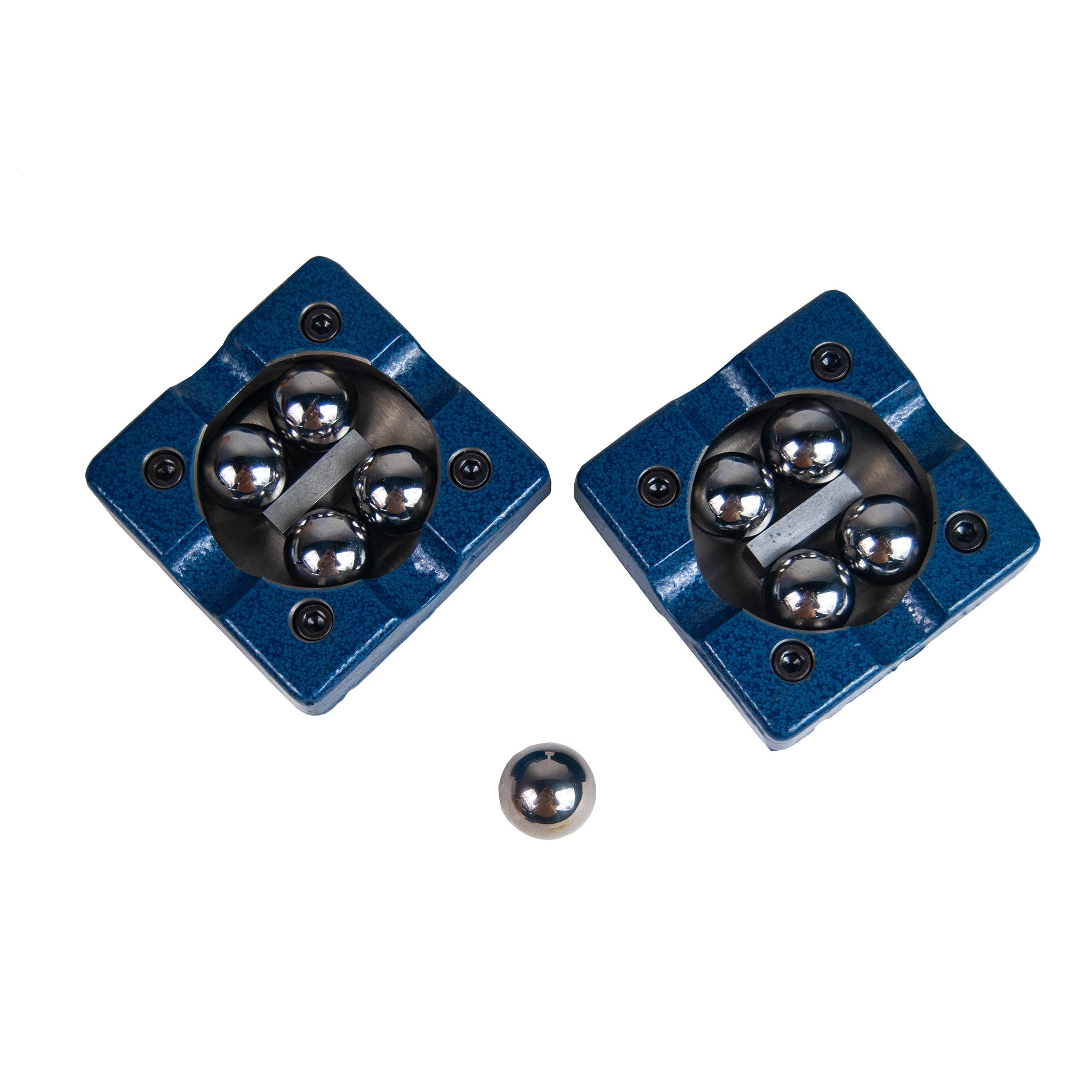

Ball Bearing “V” Block

…Overcomes Production or Set-Up Difficulties Inherent in Plain V-Blocks. Overcomes Geometric Limitations.

Enables you to inspect and detect out-of-round conditions and lobes with no damage to parts and no damage to blocks

Sold without clamps. Complete with Test Ball.

Features

• Accuracy of Balls: 25 millionth of an inch sphericity on small and medium set. 50 millionths of an inch on large set.
• Overall accuracy of matched pairs +/-5 microns.
• Balls Rockwell C-62 – Surface finish 0.2 microinches.
• Calibrated balls are certified.
• Class 40 cast iron, used on base and housing, is heat stabilized and seasoned.
• Spacers are hardened through and precision ground by pairs.
• Pair of blocks assembled using metrology equipment.

Dimensions

Available in 3 sizes with ranges of: 3/64″ – 2 1/2″; 3/22″-5″; 3/16″-15″.

Sold in matched pairs complete with clamps (for use when machining).

Functions

• Balls undergo slight elastic deformation when parts are loaded on. Hence parts will not be damaged while being inspected or produced.
• Detection of lobes and superimposed lobes made easy.
• Easy readjustment of balls which provide new bearing points.
• Handles diameters up to 15 inches.
• Increased contact area due to special geometric spacing of balls in blocks.
• 8 contact points per pair of blocks share load distribution.
• Balls are self-aligning and hard wearing.
• 1 each precision spacer per block provides 2 different angles per pair.
• Simply turn each block 90° and inspect component using both angles.
• Special inspection set ups using cylinder squares now possible.

Important Note

Balls Are Fixed In Blocks And Are Not Designed To Rotate In Use.
