Austin AB-66120HWG 6x6x120 Type 1 Hingecover Wireway – No ko’s, Painted ANSI 61 Gray Online

Original price was: $4.99.Current price is: $2.00.

SKU: US-4411417854035 Categories: , Tags: , , , , , , , , , , , , , , , , , , , ,

Description

Austin AB-66120HWG 6x6x120 Type 1 Hingecover Wireway – No ko’s, Painted ANSI 61 Gray

Description

Austin NEMA 1 hinge cover wireway is Underwriters Laboratories Listed and is designed for use in housing electrical wiring. It provides a degree of protection against limited amounts of falling dirt. Fittings can be opened on any side to permit the laying in of entire runs of wiring.

Finish

Austin NEMA 1 hinge cover wireway is provided standard in galvanized steel. An ANSI 61 gray polyester powder coating is available on request.

Construction

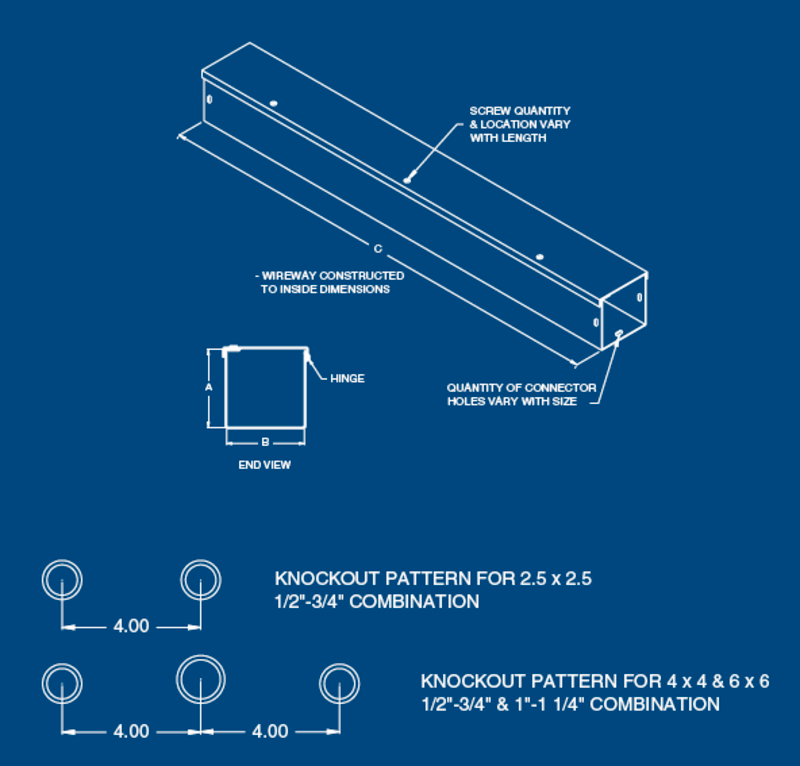

Fabricated in accordance with UL specifications from code gauge steel. Wireway sizes 2.5×2.5, 4×4, and 6×6 have formed hinges. Wireway sizes 8×8, 10×10, and 12×12 have butt hinges. Cover is held in place by screws on opposite side of hinge. Single sheet steel for body. Wireway can be furnished with or without knockouts in 2 ½ x 2 ½ , 4 x 4, and 6 x 6 only.
